QLC Plus configuration

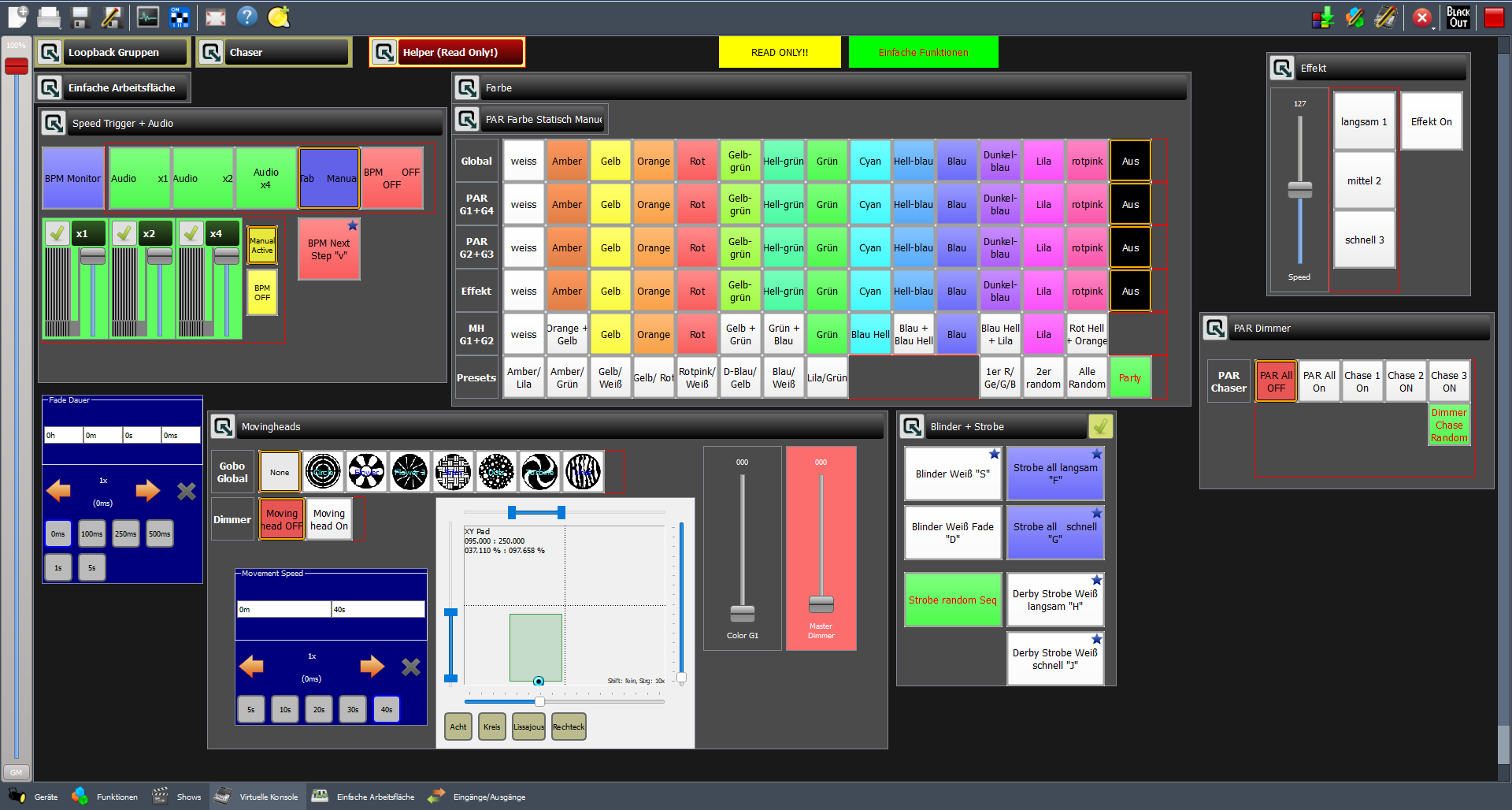

This repository contains all files needed to setup the lighting console using Q Light Controller +.

Tested with QLC+ Version 4.12.7 (download)

Setup

Before opening the preset, import the fixtures first. See user_folder_QLC+ for details.

Advanced Information

Device patch

start address	range	end address	name	type
001	6	006	RGB-PAR cz1	n.a.
007	6	012	Beamz Jely Ball 1	beamZ Magic Jelly DJ Ball
.
019	8	026	FG LED Pot 12x1 RGBW 1	Fun Generation LED Pot 12x1W RGBW (15°)
027	8	034	FG LED Pot 12x1 RGBW 2	Fun Generation LED Pot 12x1W RGBW (15°)
035	8	042	FG SePAR rgbw 1	Fun-Generation SePar Quad LED RGBW
043	8	050	FG SePAR rgbw 2	Fun-Generation SePar Quad LED RGBW
051	4	054	Derby 1	Showtec Techno Derby
055	8	062	FG LED Pot 12x1 RGBW BAT 1	Fun Generation Battery LED Pot QCL 15°
063	8	070	FG LED Pot 12x1 RGBW BAT 2	Fun Generation Battery LED Pot QCL 15°
.
100	10	110	Moving Head 1	n.a.
111	11	121	MH2 FG PicoSpot 20	Fun Generation PicoSpot 20 LED
122	11	132	MH3 FG PicoSpot 20	Fun Generation PicoSpot 20 LED

Concept of operation

...

Note

TODO: Describe Concept of operation
